Cartouche No.1

What is a cartouche you ask? Google tells us that a cartouche is "a carved tablet or drawing representing a scroll with rolled-up ends, used ornamentally or bearing an inscription."

Historically you can find these carved in wood and stone adding decoration to furniture or buildings. When used as an architectural element many carry an inscription or date and they may also have other decorative elements added to them to add more interest or to tell a story.

The cartouche in this project would be the perfect place to start if you were looking to add an interesting bit of design to a headboard, piece of furniture, elegant looking house number plaque or as a powerful starting point to build a coat of arms around. Not to mention that the 2 shields in this project, with a bit of added VCarving, would make for a nice memorial plaque or monogrammed accent to the top of a keepsake box. The individual elements can also easily be repeated and overlapped to create decoration for carved molding or frames.

We have designed a few neat features into this project that will make it even easier to use and reuse.  These features include:

  •  Shield No.7 has a flat bottom so it can easily accept VCarving or the addition of other models.

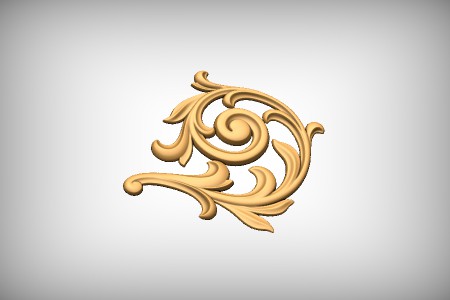

  •  The leaf and flower flourishes have been modeled to easily merge together to create a more complex design.


Get this project now!

Projects are available in three file types: V3M, STL and PNG. You will be asked to choose the correct type for your software at the checkout.

Never lose your models again! Once a project has been purchased, members can log back in and download to all three file types for no extra cost.

Cartouche No.1 - $35.00 USD


Hack this Project!


This "Winston Coat of Arms" layout was made using models from the following projects:


Make this hack yourself by adding all the projects used to your basket!

The Cartouche No.1 project contains the following models and project sheet.


To get you started on your next weekend project we have included this assembled layout.


Project Sheet - Click to enlarge.


Food for thought.
Ideas for other combinations of this project.


In case you need...

The vector outlines for all of the models in this project are available to download from this link:

Outlines

In case you wanted to know...

Fonts used:

  • Old English

  • monotype corvisa


Get yourself noticed... you know you deserve it!


Post your finished project in the Vectric User Forum under Vector Art 3D / Design and Make It - Gallery or Email us an image of a project you made that uses one of our projects and a short description (try to include software used, the CNC, finishing process and a social link... don't forget your name).


When it gets posted we will be sure to let you know!!!!
